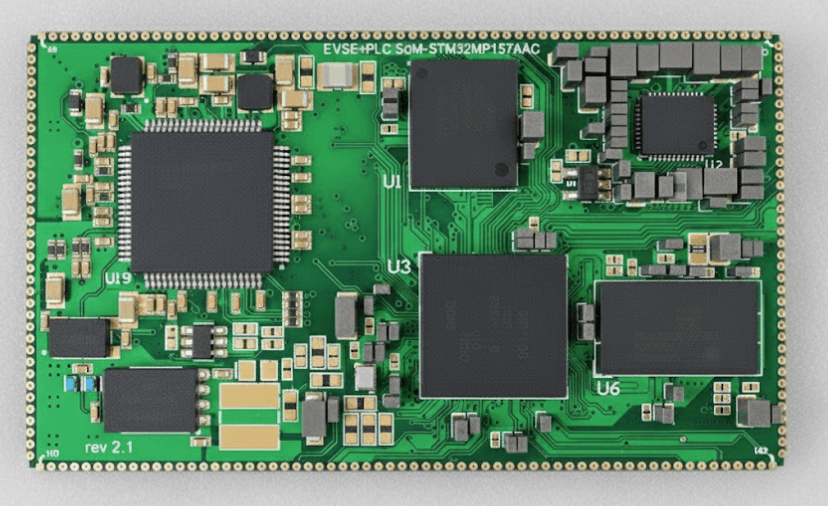

STM32MP157 EVSE SOM | GreenPHY PLC & ISO15118 Controller
Advanced ISO15118 & PLC Capable Module
- ✓Dual-core Arm Cortex-A7 @ 650 MHz
- ✓Integrated GreenPHY (IS32CG5317) Support (ISO15118)
- ✓Plug & Charge (PnC) Ready
- ✓CCS & DIN 70121 Compliant
- ✓3D GPU for Advanced HMI
Product Overview
The EVSE-PLC-MP157-SOM is the ultimate module for next-generation DC and high-end AC chargers. Featuring the powerful STM32MP157 (Dual Cortex-A7) and integrated GreenPHY, it enables full ISO15118 Plug & Charge compliance, CCS, DIN 70121, and V2G (Vehicle-to-Grid) capabilities.
Designed for longevity and reliability, this module simplifies the development of complex embedded systems. With its integrated GPU and extensive peripheral set, it supports sophisticated user interfaces and communication protocols.
| CPU Name | STMicroelectronics STM32MP157 |
|---|---|
| Application Domain | Dual ARM Cortex-A7 @ up to 650MHz |
| Real Time Domain | ARM Cortex-M4 @ 209MHz |
| RAM (Application Domain) | 512MB DDR3L |
| Flash (Application Domain) | 1GB NAND FLASH (4GB eMMC Optional) |
| Display Interface | MIPI-DSI 2-lane display interface |
| GPU | 3D GPU Vivante @ 533 MHz - OpenGL ES 2.0 |
| GreenPhy PLC | Integrated GreenPHY (IS32CG5317) (ISO15118) |
| Ethernet | 10/100M Ethernet |
| I2C | 6x I2C channels |
| SPI | 6x SPI channel |
| USB | 2x USB 2.0 |
| UART | 8x UART |
| SDMMC | 3x SDMMC |
| ADC | 3x ADC converters |
| CAN | 2x CAN FD |
| Timer | 3x Timer Output |
| Audio Interfaces | 1x SAI |
| RNG | Yes |
| TrustZone® peripherals | Yes |
| Secure Boot | Yes |
| OS (Application Domain) | Linux (OpenSTLinux) |
| OS (Real Time Domain) | FreeRTOS |
| Temperature Range | –40 to +85°C (Industrial) |
| Input Voltage | 5V DC |
| Dimensions | 64mm x 37mm |
